Roll Cutting Machine DW98429
General Specification
DESCRIPTION STANDARD IMAGE

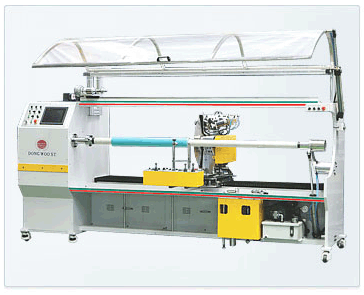

MODEL DW-98429 Roll Cutting Machine DW98429
SLITTING METHOD Ring knife Cutting System
KIND OF MATERIAL Adhesive tape, Non-adhesive materials, etc.
CHUCKING Inside Air Cylinder Type
CONTROL Automatic Control System By Program
MATERIAL WIDTH Max. 2,400mm
MACHINE SPEED Max. 850rpm
MAIN DRIVING MOTOR MOTOR(220V, 7.5kw, 10hp)
Structure

A. Unwinding Parts.

1) Main motor : 7.5kw, 220V, 3 Phase
2) Movement (Left & Right) : AC Servo motor
3) Movement (Forward & Backward) : AC Servo motor + Gear Head
4) Angle Control : AC Servo motor + Gear Head
5) Knife Motor : Gead motor

B. Electric Parts.

1) Speed Control : Inverter (7.5kw, 1.5kw)
2) Operation Panel : Touch Screen Type
3) Movement (Left & Right) : Servo Driver & Controller
4) Program Controller

C. Knife Grinder Parts.

1) Main Motor : DC Motor 90w
2) Abrasive Material : Diamond
3) Movement : Air Cylinder Type
4) Electric Control1

D. Frame Parts.

1) Size (m/m) : 3,635ⅹ1,700ⅹ1,800
2) Shaft (m/m) : 2,500
3) Door Type : 1 Step - Door Up, 2 Step - Fixing The Main Shaft
4) Chucking Type : Inner Chucking Type by Air Cylinder

E. Material Wrapping Parts.

1) Movement : Screw Type By AC Motor
2) Tension : Powder Brake
