Roll Cutting Machine DW98428
General Specification
DESCRIPTION STANDARD IMAGE

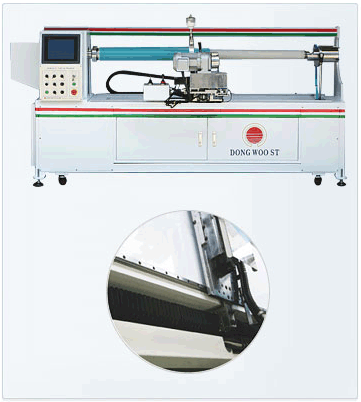

MODEL DW-98428 Roll Cutting Machine DW98428
SLITTING METHOD Ring Knife Cutting System
KIND OF MATERIAL Adhesive Tape, Non-adhesive Materials, etc.
CHUCKING Inside Air Cylinder Type
CONTROL Automatic Control System By Program
MATERIAL WIDTH Max. 1,550mm
MACHINE SPEED Max. 850rpm
MAIN DRIVING MOTOR Motor(220V, 3.7kw, 5hp)
Structure

A. Unwinding Parts.

1) Main Motor : 3.7kw, 220V, Single Phase
2) Movement (Left & Right) : AC Servo Motor
3) Movement (Forward & Backward) : AC Motor + Gear Head
4) Angle Control : AC Servo Motor + Gear Head
5) Knife Motor : Gear Motor

B. Electric Parts.

1) Speed Control : Inverter(3.7kw, 1.5kw)
2) Operation Panel : Touch Screen Type
3) Movement (Left & Right) : Servo Driver & Controller
4) Program : PLC Type

C. Knife Grinder Parts.

1) Main Motor : DC Motor 90w
2) Abrasive Material : Diamond
3) Movement : Air Cylinder Type
4) Electric Control

D. Frame Parts.

1) Size (m/m) : 2,700 ⅹ 900 ⅹ1,300
2) Shaft (m/m) : 1,750
3) Door Type : 1 Step - Door Up, 2 Step - Fixing The Main Shaft
4) Chucking Type : Inner Chucking Type by Air Cylinder
