General Specification
| DESCRIPTION | STANDARD | IMAGE |
|---|---|---|

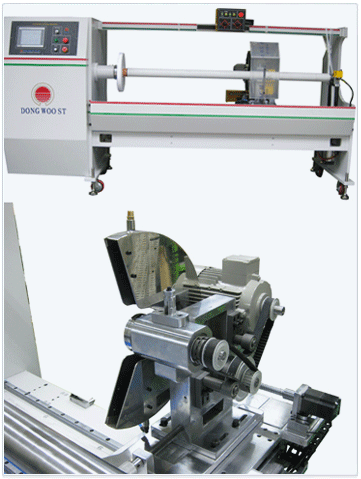

| MODEL | DW-98428-1 |  |
| SLITTING METHOD | Ring Knife Cutting System | |
| KIND OF MATERIAL | Adhesive Tape, Non-Adhesive Materials, etc. | |
| CHUCKING | Inside Air Cylinder Type | |
| MATERIAL WIDTH | Max. 1,800mm | |
| MACHINE SPEED | Max. 850 rpm | |
| MAIN DRIVING MOTOR | Motor(380V, 3.7kw, 5hp) |
Structure
A. Driving Parts
1) Main Motor : 3.7kw, 5hp, 3 Phase
2) Movement (Left & Right) : AC Servo Motor
3) Movement (Forward & Backward) : AC Motor + Gear Head
4) Angle Control : AC Servo Motor + Gear Gead
5) Knife Motor : Geared Motor
B. Electric Parts
1) Speed Control : Inverter (3.7kw, 1.5kw, 0.4kw)
2) Operation Panel : Touch Screen Type
3) Movement (Left & Right) : Servo Driver & Controller
4) Program : PLC Type
C. Frame
1) Size (m/m) : 3,142 ⅹ 1,548 ⅹ 1,130
2) Shaft (m/m) : 2,000
3) Door Type : 1 Step - Door Up, 2 Step - Fixing the Main shaft
4) Chucking Type : Inner Chucking Type by Air Cylinder
